Molded & Pultruded Grating Clips:
Mach’s Grating supplies a number of different types of 316SS clips to attach its various molded and pultruded gratings to supporting members. Although the clips are illustrated here with AGL’S molded grating products, similar clips are often available for our pultruded grating as well. Contact Mach’s Grating for more information.

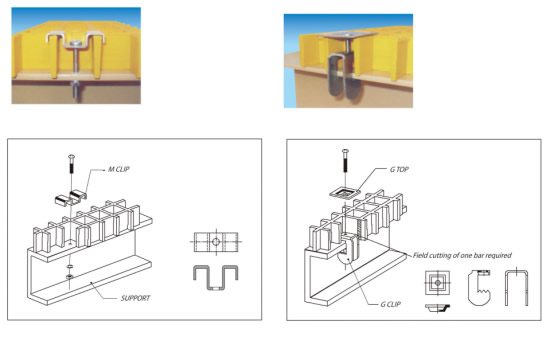

M Clips:
M clips or saddle clips clamp 2 grating load bars to the support. This provides excellent holding capability and because of this, are recommended for stair treads and most molded and pultruded gratings.
G Clips:
When drilling the support member has to be avoided, G clips offer the solution. The lower jaw of the clip grips the support flange when the bolt is torqued. A heavier top clip then completes the assembly to carry the loads. Providing excellent bidirectional holding capability for molded square mesh grating.

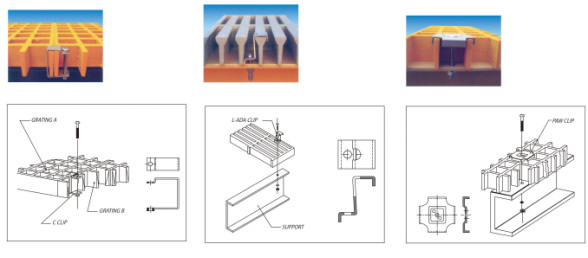

C Clips:
C clips were specifically designed to tie two panels of molded gratings together to minimize differential defections when their joints fall between supports . C clips are also used in grating leg systems for panel abutments. Lower nut is welded to clip so installation is from top side of grating floor.
L Clips:
This lighter duty clip should be specified to hold one load bar to the support for lighter duty loads. It is available for molded and pultruded gratings.
PAW Clips:
For the ultimate in holding capacity of square mesh molded grating, the exclusive American Grating PAW clip should be specified. These clips clamp 4 load bars to the support, offering excellent bidirectional resistance to loads from seismic or other lateral forces.

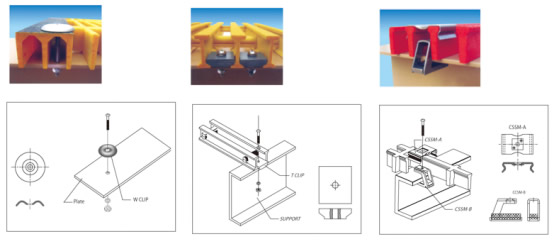

W clips were specifically designed to tie two panels of molded gratings together to minimize differential defections when their joints fall between supports . C clips are also used in grating leg systems for panel abutments. Lower nut is welded to clip so installation is from top side of grating floor.
T clips offer the solution for below-surface attachment to pultruded gratings. When used these FRP clips should be specified in pairs as shown.
Developed by Mach’s Grating, the CSSM system is ideal for applications where vibration is a potential. We have improved on the G clip by replacing the jaw teeth- which can damage steel coatings- with a hard durometer neoprenepad. Tightening the clip builds in a “spring” which eliminates loosening.
